Wall Assemblies

Images below represent a general overview of various Stuc-O-Flex system configurations and product applications. Material installations may vary as do methods of construction and building code requirements. We welcome the opportunity to discuss relevant Issues on a project specific basis:
Contact 1-800-305-1045

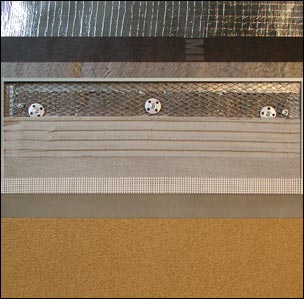

WaterWay Drainable Stucco Assembly

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Therm-Flash (peel & stick) - optional
  4. WaterWay Rainscreen Drainage Mat
  5. Lath
  6. Scratch & Brown Coat (stucco)
  7. Base Coat & Reinforcing Mesh - optional
    (PRM or Stuc-O-Base)
  8. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
See Video Specifications


Stuc-O-Flex or Europlast / Euroseal over Traditional Stucco

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Therm-Flash (peel & stick) - optional
  4. Lath
  5. Scratch & Brown Coat (stucco)
  6. PRM or Stuc-O-Base - optional
  7. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
Specifications/Stuc-O-Flex
Specifications/Europlast

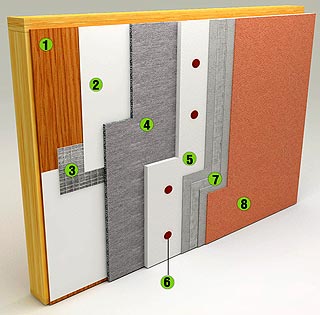

WaterWay Drainable EIFS Assembly

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Therm-Flash (peel & stick) - optional
  4. WaterWay Rainscreen Drainage Mat
  5. Insulation Board
  6. Mechanical Fasteners (Insulation)
  7. Base Coat & Reinforcing Mesh PRM or Stuc-O-Base
  8. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
Specifications

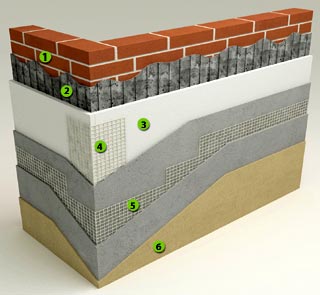

EIFS - Adhesive Attachment

  1. Cementious Substrate Brick / Block / Concrete
  2. PRM or Stuc-O-Base / Adhesive
  3. Insulation Board
  4. Reinforcing Corner Mesh
  5. Base Coat & Reinforcing Mesh PRM or Stuc-O-Base
  6. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
Specifications

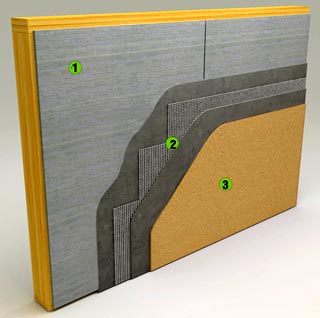

Application to Cement Board

  1. Cement Board
  2. Base Coat & Reinforcing Mesh PRM or Stuc-O-Base
  3. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
Specifications
See Video Cement Board Assembly

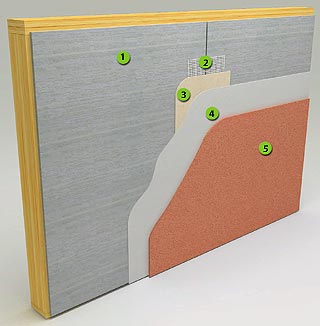

Application to Cement Board (JC)

  1. Cement Board
  2. Reinforcing Mesh
  3. Elastomeric Joint Compound
  4. PrimeSeal™ (Primer)
  5. Stuc-O-Flex Elastomeric Acrylic Finish
Specifications
See Video Cement Board Assembly


Application to Concrete Surfaces

  1. Cementitious Substrate Brick / Block / Concrete
  2. Base Coat & Reinforcing Mesh (PRM or Stuc-O-Base) optional
  3. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
Specifications

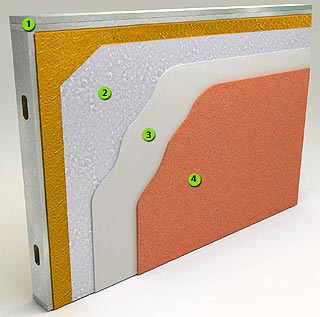

Application to Insulated Metal Panels

  1. Framing
  2. Insulated Metal Panels
  3. Primer (as required)
  4. Stuc-O-Flex Elastomeric Acrylic Finish
Specifications

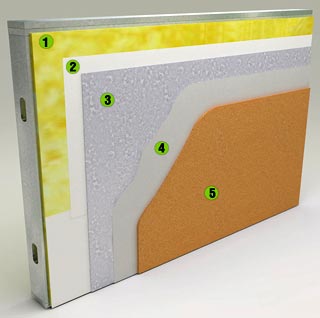

Application to Metal / ACM Panels

  1. Substrate / Sheathing
  2. Weather Resistive Barrier (WRB)
  3. Metal or ACM Panel
  4. Primer (as required)
  5. Stuc-O-Flex Elastomeric Acrylic Finish
Specifications

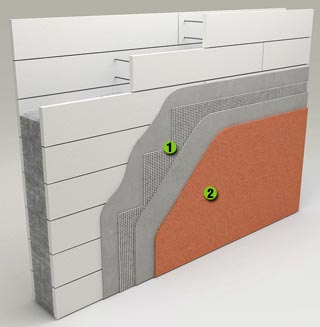

ICF (Insulated Concrete Forms)

  1. Base Coat & Reinforcing Mesh (PRM or Stuc-O-Base)
  2. Stuc-O-Flex Elastomeric Acrylic Finish or Europlast / Euroseal
Specifications


Wall Assemblies samples

WaterWay Drainable Stucco Assembly

Direct Application to Cement Board (JC)
Direct Application to Cement Board
Direct Application to Metal Substrates
Direct Application to Insulated Metal Panels
Application to Insulation Board
Insulation Board High Impact Resistance
Putz-Flex to Insulation Board
WaterWay Drainage Mat
ICF - Insulated Concrete Forms
